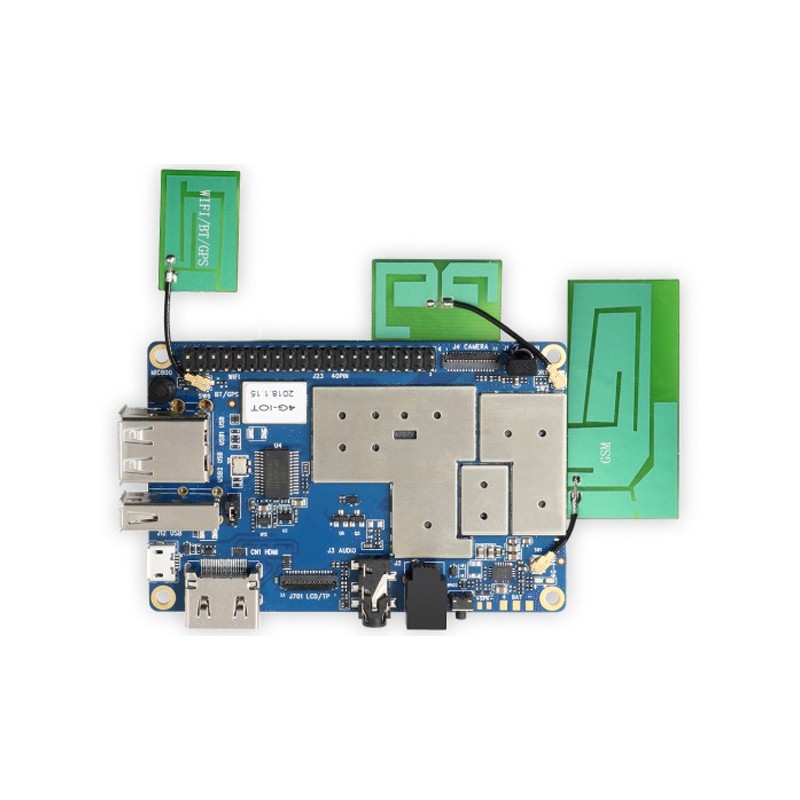

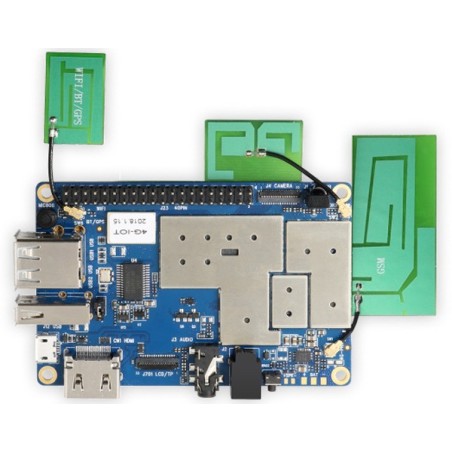

Orange Pi 4G IOT
$131.00
No tax
Orange Pi 4G-IoT is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Security policy
We prioritize the security of your personal information and transactions. Our store implements indu
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Hardware specification
| Processor | MT6737 |
| CPU | Quad core ARM® Cortex-A53, Main frequency up to 1.25GHz |
| GPU | ARM Mali-T720 MP1 |
| Memory | 1GB DDR3 |
| Emmc | 8GB EMMC Flash |
| Wireless | WiFi / BT / FM / GPS Four in one |
| Radio frequency | • GSM: 900/1800 (850/1900 optional) • WCDMA: B1/B8 (B2/B4/B5 optional) • TD-CDMA • CDMA2000 • FDD-LTE: B1/B3/B7/B20 (B2/B4/B17optional) • TDD-LTE: B38/40/41B |
| Display | HD |
| Capacitance touch | Support |
| Camera | 13M （25pin ZIF Connector） |
| Accelerometer Sensor | Support |
| IR Control | Support (Adapted iDroid remote controller) |
| Fingerprint Identification | Support |
| SIM Card | mini Single SIM Card |
| TF Card | Support hot-plugging |
| Audio | • Earphone: For audio input / output • Mic: For audio input |
| USB | • USB Host × 3: Support OTG • Micro USB × 1: Only for writing image |
| LED | • Power Indicator LED:Red • Status Indicator LED: Green |
| Key | Power |
| HDMI | Support |
| Low-level peripherals | 40pin Headers: 1.8V, SPI × 2 , I2C × 3, UART × 2 |
| Power | • DC : 5V 2A • Battery:Connection through a weld plate |
| OS | Android 6.0 |
| Programming support | C、C++、Kotlin、Java、Shell、Pyhon |
Interface definition
| Size | 55mm × 85mm |
| Weight | 43g |
